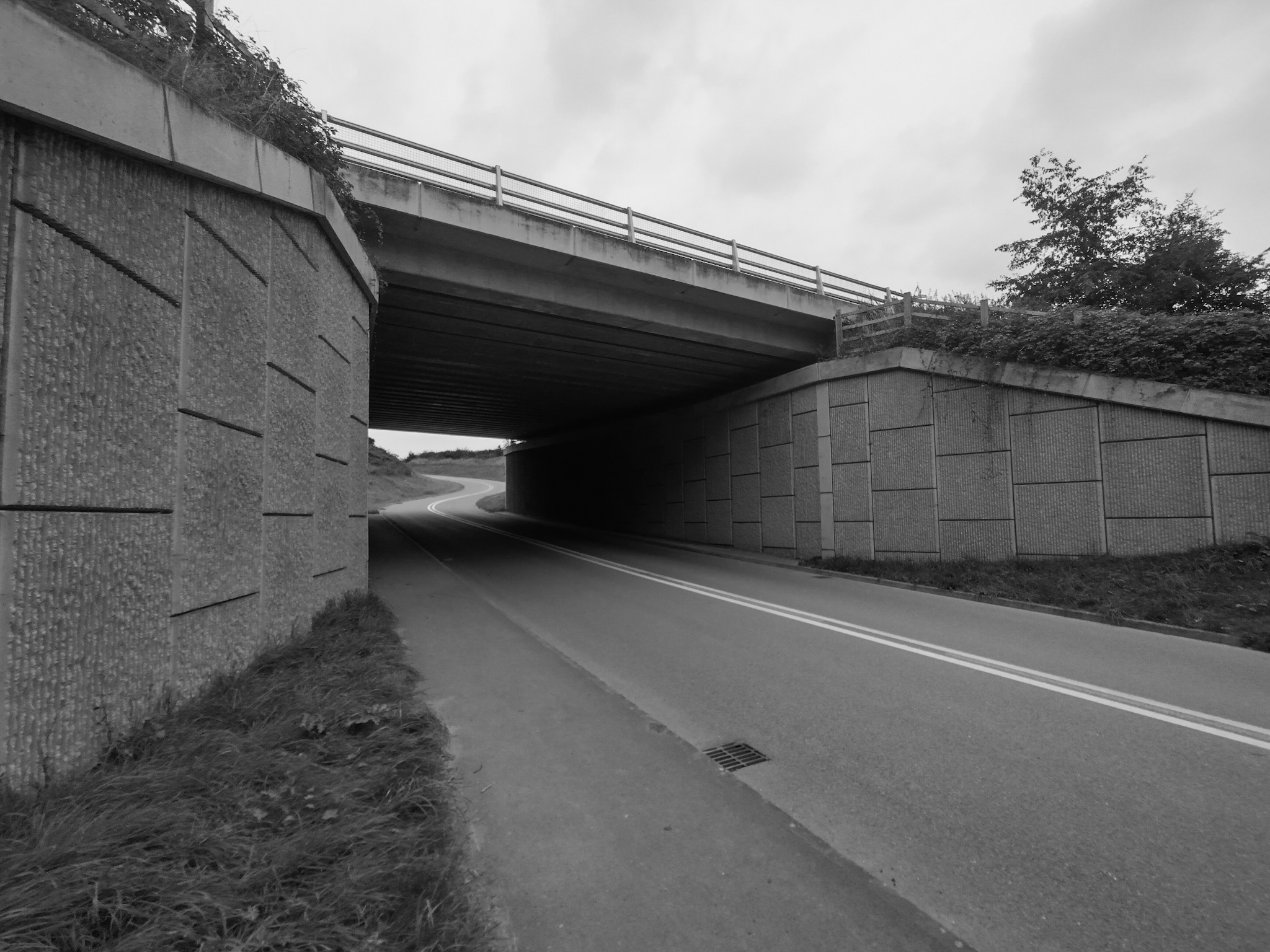

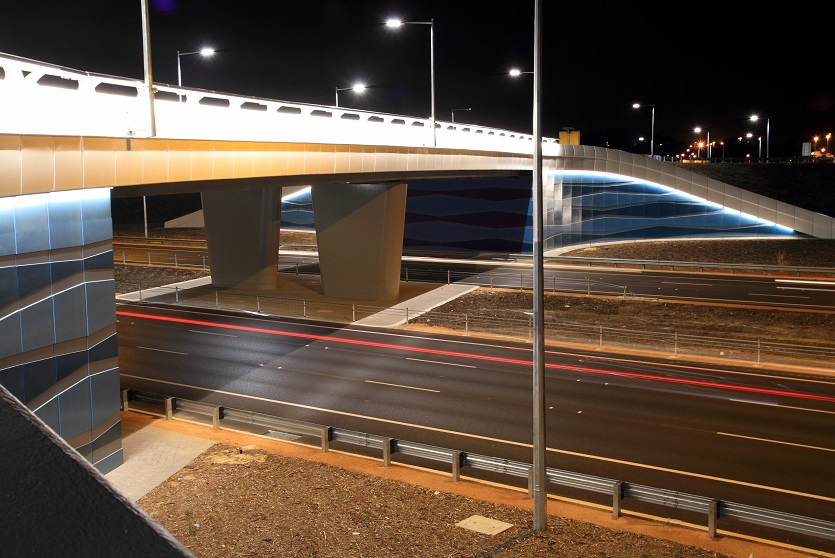

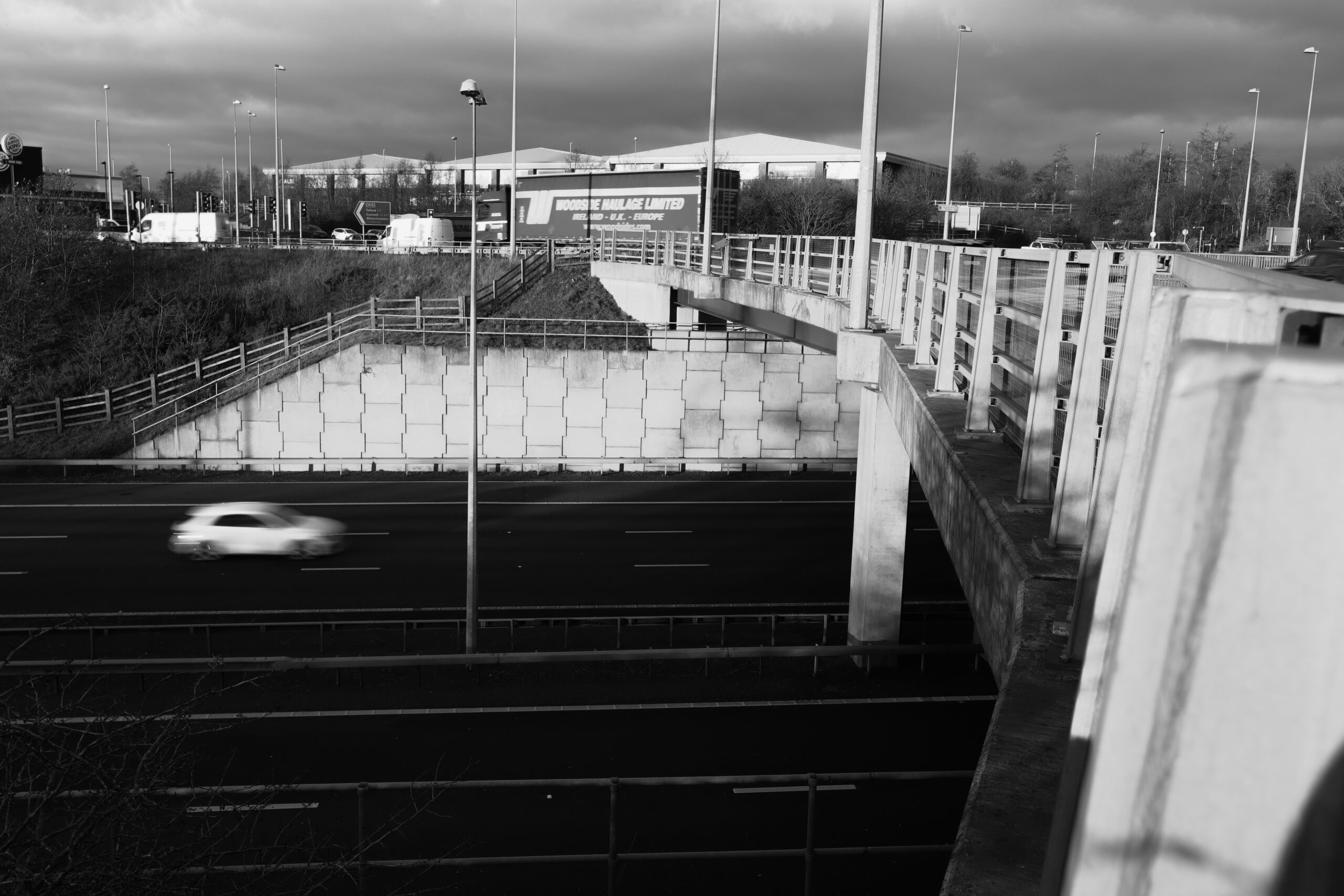

The MSE abutment solution is regularly used for building three different types of bridge abutments, described below:

  • “True” or “Pure” abutments: The primary bridge structure is founded on a spread footing directly supported by a reinforced soil retaining structure.
  • Mixed Abutments: The bridge structure is founded on a footing on piles with the reinforced soil retaining structure providing earth retention only.
  • Integral Abutments: An integral bridge abutment is modelled as a monolithic structure. The support beams and abutment are joint-free, without bearings to support the bridge deck, resulting in maintenance cost savings.

Core Solutions

Reinforced Earth® MSE walls combine engineered backfill with reinforcements (geosynthetics or steel) and a choice of facing elements (concrete, steel, or wire mesh).

T-Wall® precast modular walls are “T”-shaped concrete units with granular backfill, providing internal stability and pullout resistance against lateral earth pressures.

TechWall™ precast counterfort walls with counterforts acting as cantilever beams. The counterforts minimise panel moments, allowing thinner, full-height concrete facings.

Architectural finish

Many architectural finish options are available allowing customisation of the facing element.

Geoquest airport

“I have worked with Geoquest on two previous projects and both times have exceeded my expectation. I find the product easy to work with, quick for construction and a good final product, looking the part. There is a good turn around time from the Geoquest team and always have answered any queries I have had. I would definitely use them again.”

Patrick Goodwin, Section Engineer, Graham Construction

“Excellent Service, system and simple to build – would always recommend”

J Millar, Project Manager, Osborne Infrastructure

“The design and materials supplied by Geoquest for the new Velindre Cancer Centre bridge was excellent, providing a high-quality product at a competitive price. The technical assistance with both the design and installation was highly commendable leading to a very high standard structure upon completion.

We would thoroughly recommend Geoquest for any retained earth projects and will recommend early engagement on future projects to utilise their vast technical knowledge for value engineering.”

Tom Morris, Project Manager, Walters

“Having used Geoquest for the provision of a reinforced earth wall system on a new highway scheme I found them to be very helpful and easy to work with in the run up to construction and also throughout the construction. The quality of the final product was very good and looks well now that the work is complete and open to traffic.”

Dave Mantle, Senior Site Manager, Octavius

“Osborne Infrastructure selected Geoquest due to their reputation and expertise. They delivered on both. They provided both the design and the fabrication of the reinforced earth abutments for the M27 Romsey Road bridge on time and within budget. Design changes due to unforeseen site conditions were dealt with efficiently with expert advice on hand to ensure we produced the right solution for our client Highways England.

I would be more than happy to recommend Geoquest and would make them my go to specialist for this type of work.”

M Whale, Senior Site Manager, Osborne Infrastructure

Engineering expertise and 120 years or more of service life

Geoquest offers unrivalled engineering expertise to provide you with the best design and supply package, coupled to commercial excellence that will make your next road development project a success.

Guaranteeing long-term life duration and minimum necessity for maintenance of the infrastructure is of outmost importance, and our designs are optimised based on the service life that is required.
