The original Reinforced Earth®, the first choice for retaining walls

Geoquest is a global leader in retaining wall design, renowned for its pioneering Reinforced Earth® MSE solution developed over 50 years ago. This durable and high-performance system has transformed retaining wall construction, offering rapid and predictable installation.

Core Solutions

  • Reinforced Earth® MSE walls combine engineered backfill with reinforcements (geosynthetics or steel) and a choice of facing elements (concrete, steel, or wire mesh).
  • TerraLink® Shored MSE walls are ideal for narrow sites, connecting shored MSE masses to existing structures via reinforcements.
  • T-Wall® precast modular walls are “T” shaped concrete units with granular backfill, providing internal stability and pullout resistance against lateral earth pressures.

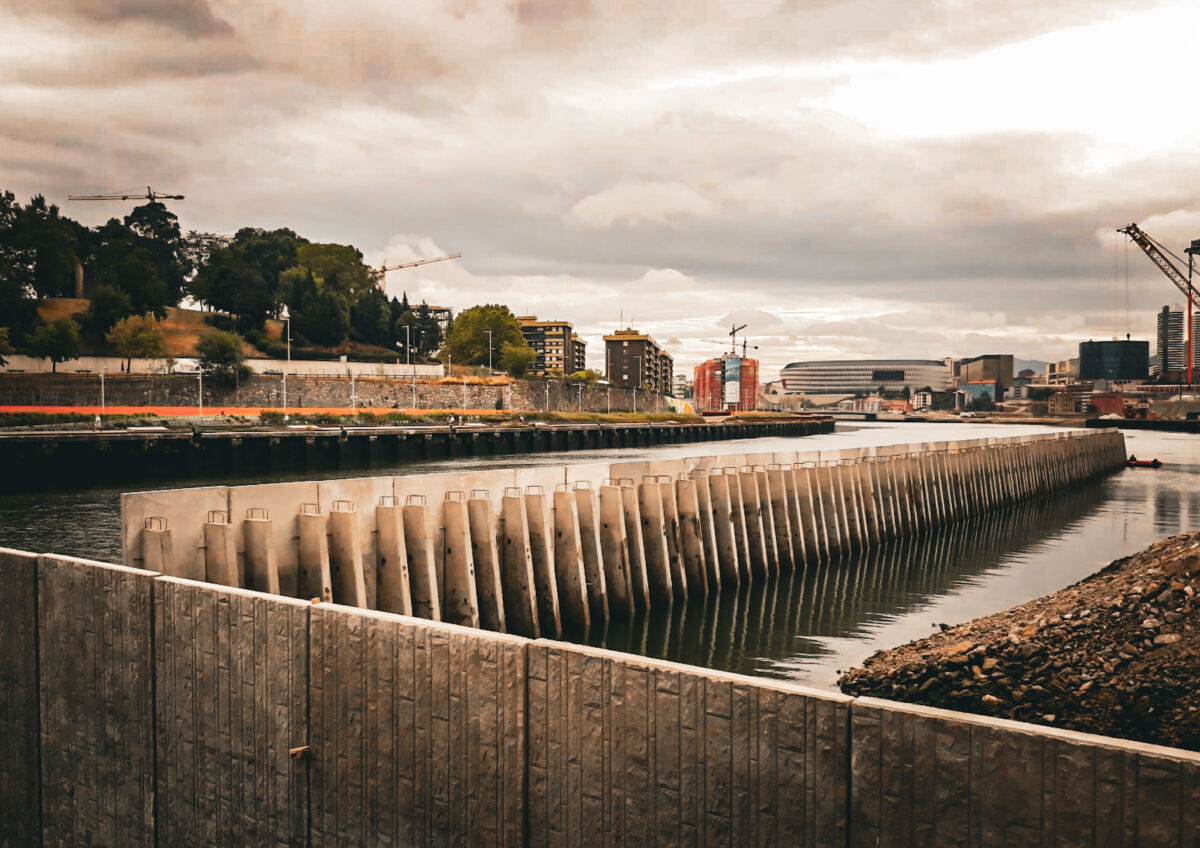

  • TechWall™ precast counterfort walls with counterforts acting as cantilever beams. The counterforts minimise panel moments, allowing thinner, full-height concrete facings.
  • Post-and-panel walls are precast concrete post-and-panel systems designed for shallow foundations and restricted spaces.

Applications

Geoquest retaining walls support infrastructure such as roads, railways, bridge abutments, hydraulic structures, industrial storage, and landfills.

Engineering expertise

Custom designs consider site conditions, soil characteristics, space, loadings, and lifespan to ensure stability and durability.

Customisation options

Architectural finishes, traffic barriers, trims, and parapets can be tailored to project needs. Geoquest’s solutions combine innovation, versatility, and reliability to meet diverse construction demands.

Reinforced Earth®, first choice for retaining walls.

Reinforced Earth® solutions have long been the first choice for engineers designing earth retention, retaining walls and ground stabilization, and for solving any soil-structure interaction design challenge.

The original Reinforced Earth®, a signature innovation

First pioneered by Geoquest, the concept of mechanically stabilized earth walls (MSE) extends itself to an array of applications. Our engineers work with your team to apply this globally-recognized solution to solve nearly any geotechnical challenge you face in building roadsbridgesembankmentsindustrial landscapes, and more. Together, we will solve problems that arise when you are seeking solutions for your soils and structure interaction.

Concept description

A resilient retaining wall solution, MSE structures combine controlled backfill with a selection of steel or geosynthetic soil reinforcements that are attached to a modular facing system. Facing systems vary, and may consist of concrete panels, wire mesh, vegetative surfaces or semi-elliptical metallic panels. The ideal combination of earth, soil reinforcements and facing creates a sustainable reinforced soil structure.

Reinforced Earth® applications

For nearly sixty years now, Reinforced Earth® structures have been constructed worldwide, now totaling more than 66-million square meters of surface area installed.

We have partnered with developers and builders in the full spectrum of building sectors:

Geoquest high speed rail

Design options and materials

Our professional engineers design Reinforced Earth® structures with checks for internal and external stability, considering the static loads and the predicted dynamic loads. We optimize the design for your project using a calculative choice of materials and proper quantities that suit your specific plans for use and intended service life.

Our decades of experience have allowed us to expand the range of design options allowing our solutions to adapt to project and site constraints. Our Reinforced Earth® structures can in fact be designed with precast concrete facing panels with various dimensions available, and using steel or geosynthetic reinforcements.

Our steel soil reinforcements have been designed and tested to optimize the pull-out and tensile capacity for various types of backfill. The reinforcing strips are patterned with “ribs” to optimize bonding with the compacted backfill. Our welded wire bar mats are used for efficiency in low-height walls or lightweight backfill situations where tension is low and extra pull-out capacity is needed.

Corrosion protection for all components in the form of galvanization is included when necessary to achieve a design life of 75 years, 100 years, or more. For temporary walls, using black steel is an option.

Our geosynthetic reinforcements are selected based on the characteristics of the intended backfill to be used, load factors, required service life and other considerations, engineers select from our four main categories of geosynthetic soil reinforcing strips:

> GeoStrap™

Coated polyester (PET) strips without high-adherence edges, best for low pH backfill

> HA GeoStrap™

Coated polyester (PET) strips with high-adherence edges, best for low pH backfill

> EcoStrap™

Coated polyvinyl alcohol (PVA) strips without high-adherence edges, best for high pH backfill

> HA EcoStrap™

Coated polyvinyl alcohol (PVA) strips with high-adherence edges, best for high pH backfill

Architectural finish

Precast panels can be customized with architectural finish allowing designers and architects to add a touch of art to Reinforced Earth® structures.

Installation

The installation procedures for Reinforced Earth® walls are straightforward. Our expert operations team will develop organized manufacturing and delivery schedules for the materials necessary to build your Reinforced Earth® structure. Installation is ensured to be rapid and predictable due to standardized material patterns and repetitive handling processes that quicken placement of the wall components.

Benefits

Rapid construction

Reinforced Earth® structures are quick to install. Materials can be delivered to site just in time for construction. A crew of four can install up to 90 square metres of wall per shift, including backfill placement and compaction.

Reliability

The internal strength and overall stability of the Reinforced Earth® composite structure provides significant static and dynamic load-bearing capacity. The durability of the materials and their resistance to extreme situations, such as seismic events, extreme variations in temperatures, and explosions, is well documented and the safety of our structures unrivalled.

Cost effectiveness

Low material cost, flexibility in the use of backfill material, the ease and speed of construction, and limited maintenance requirements are significant advantages of Reinforced Earth® structures, reducing overall cost.

Aesthetics

The variety of our facings can meet specific architectural and artistic requirements. We can integrate the desired artwork directly into the design plans of our panels, with endless possibilities for creative, visually pleasing finishes.

Adaptability

The Reinforced Earth® technology provides solutions in complex situations and is often the best or only choice for restricted right-of-way, unstable natural slopes, marginal foundation conditions and large expected settlements.

Reduced environmental footprint

Using less materials, requiring less space, and generating less CO2 than conventional construction methods, the Reinforced Earth® technique reduces the impact on the environment.

Structural flexibility

Reinforced Earth® systems adapt to geometric requirements such as face inclination or straight or curved alignments. The modularity of the facing and the specific construction devices allow the structures to accept substantial total and differential settlement on poor foundations.

Reduced land use

Reinforced Earth® structures require little land use and site impact during construction, which is a great advantage where construction projects need to accommodate existing infrastructure and busy urban areas.

“I have worked with Geoquest on two previous projects and both times have exceeded my expectation. I find the product easy to work with, quick for construction and a good final product, looking the part. There is a good turn around time from the Geoquest team and always have answered any queries I have had. I would definitely use them again.”

Patrick Goodwin, Section Engineer, Graham Construction

“Excellent Service, system and simple to build – would always recommend”

J Millar, Project Manager, Osborne Infrastructure

“The design and materials supplied by Geoquest for the new Velindre Cancer Centre bridge was excellent, providing a high-quality product at a competitive price. The technical assistance with both the design and installation was highly commendable leading to a very high standard structure upon completion.

We would thoroughly recommend Geoquest for any retained earth projects and will recommend early engagement on future projects to utilise their vast technical knowledge for value engineering.”

Tom Morris, Project Manager, Walters

“Having used Geoquest for the provision of a reinforced earth wall system on a new highway scheme I found them to be very helpful and easy to work with in the run up to construction and also throughout the construction. The quality of the final product was very good and looks well now that the work is complete and open to traffic.”

Dave Mantle, Senior Site Manager, Octavius

“Osborne Infrastructure selected Geoquest due to their reputation and expertise. They delivered on both. They provided both the design and the fabrication of the reinforced earth abutments for the M27 Romsey Road bridge on time and within budget. Design changes due to unforeseen site conditions were dealt with efficiently with expert advice on hand to ensure we produced the right solution for our client Highways England.

I would be more than happy to recommend Geoquest and would make them my go to specialist for this type of work.”

M Whale, Senior Site Manager, Osborne Infrastructure

Engineering expertise and 120 years or more of service life

Geoquest offers unrivalled engineering expertise to provide you with the best design and supply package, coupled to commercial excellence that will make your next road development project a success.

Guaranteeing long-term life duration and minimum necessity for maintenance of the infrastructure is of outmost importance, and our designs are optimised based on the service life that is required.
